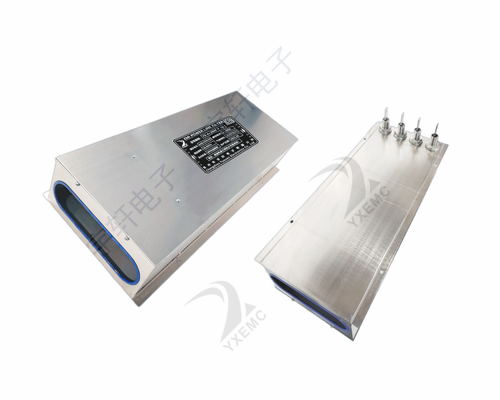

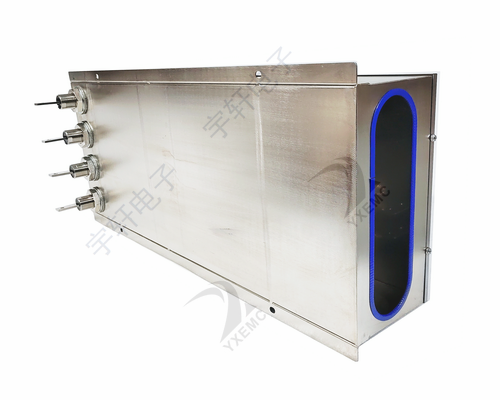

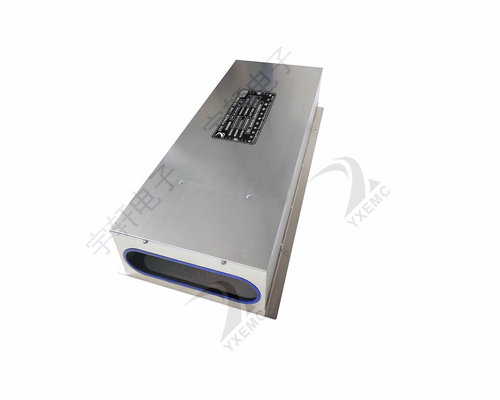

特 点 Features
● 单相两线、三相四线制、直流两线/三线电源滤波器。
Single phase two wire, three-phase four wire, DC two wire / three wire power filter.
● 体积紧凑，压降低，漏电流小。Compact size, low voltage and low leakage current.
● 独特的接线结构设计，进线可在打开的屏蔽腔体内接线，方便又安全。
Unique wiring structure design, the incoming line can be connected in the open shielding chamber, which is convenient and safe.
应 用 Application
● 微波暗室、屏蔽房、电子方舱和机柜等设施的专用配套，能有效的抑制辐射干扰。
The special facilities of microwave dark room, shielding room, electronic cabin and cabinet can effectively inhibit radiation interference.
性能指标 Characteristcs
额定电压Rated voltage |
单相Single phase 250VAC（线-线/线-地） |
三相three-phase 440/250VAC（线-线/线-地） |
工作频率 Operating Frequency |
50/60HZ |
|
耐压试验 Test Voltage |
1000VDC/2S（线-线Line - line） 1000VDC/2S（线-地Line - ground） 3000VDC/2S |
|
电压降△V Voltage drop |
<1V（额定工作条件Rated working conditions） |
|
气候类别 Climate category |
25/070/21 |
|
单相产品型号表 Filter Table 注：零地电压为0V Note: N-G voltage is 0V
型号 model |
额定电流A Rated curren |
MAX泄漏电流A leakage current |
进线接线螺杆 Incoming wiring screw |
输出导线 Output lead |
波导螺杆 Waveguide screw |
外形尺寸Fig. Outline Drawing |
插入损耗dB insertion loss |
YX-2×10C-F-10 |
10 |
0.5 |
M6 |
14AWG |
M24 |
1 |
100dB 备注：可拓展至40GHz remarks: It can be extended to 40GHz |
YX-2×16C-F-10 |
16 |
0.5 |
M6 |
12AWG |
M24 |
1 |
|
YX-2×32C-F-10 |
32 |
0.5 |
M6 |
10AWG |
M24 |
2 |
|
YX-2×50C-F-10 |
50 |
0.5 |
M6 |
8AWG |
M24 |
2 |
|
YX-2×60C-F-10 |
60 |
0.5 |
M6 |
6AWG |
M33 |
3 |
|
YX-2×80C-F-10 |
80 |
1 |
M8 |
6AWG |
M33 |
4 |
|
YX-2×100C-F-10 |
100 |
1 |
M8 |
4AWG |
M33 |
4 |
|
YX-2×150C-F-10 |
150 |
1 |
M8 |
2AWG |
M42 |
5 |
|
YX-2×200C-F-10 |
200 |
1 |
M12 |
1/0AWG |
M42 |
6 |
三相产品型号表 Filter Table 注：零地电压为0V Note: N-G voltage is 0V
型号 model |
额定电流A Rated curren |
MAX泄漏电流A leakage current |
进线接线螺杆 Incoming wiring screw |
输出导线 Output lead |
波导螺杆 Waveguide screw |
外形尺寸Fig. Outline Drawing |
插入损耗dB insertion loss |
YX-4×10C-F-10 |
10 |
0.5 |
M6 |
14AWG |
M33 |
7 |
100dB 14K~10GHz 备注：可拓展至40GHz remarks: It can be extended to 40GHz |
YX-4×16C-F-10 |
16 |
0.5 |
M6 |
12AWG |
M33 |
7 |
|
YX-4×32C-F-10 |
32 |
0.5 |
M6 |
10AWG |
M33 |
7 |
|
YX-4×50C-F-10 |
50 |
0.5 |
M6 |
8AWG |
M33 |
8 |
|
YX-4×65C-F-10 |
65 |
0.5 |
M6 |
6AWG |
M33 |
8 |
|
YX-4×80C-F-10 |
80 |
1 |
M8 |
6AWG |
M42 |
9 |
|
YX-4×100C-F-10 |
100 |
1 |
M8 |
4AWG |
M42 |
9 |
|
YX-4×150C-F-10 |
150 |
1 |
M8 |
2AWG |
M42 |
9 |
|
YX-4×200C-F-10 |
200 |
1 |
M12 |
1/0AWG |
M48 |
10 |
|
YX-4x400C-F-10 |
400 |
1.2 |
M12 |
25×6 |
4×M42 |
11 |
|
YX-4x500C-F-10 |
500 |
1.2 |
M12 |
25×6 |
4×M42 |
11 |

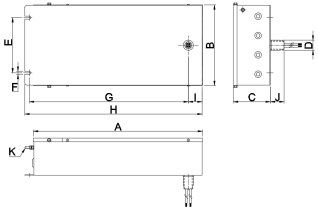

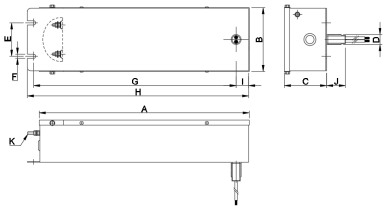

外形尺寸图 Outline Drawing : mm
Fig.1~Fig.6
|
Fig.7~Fig.10
|
外形尺寸Fig. |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
1 |
403 |
153 |
101 |
M24 |
80 |
10 |
385 |
430 |
30 |
45 |
M6 |
2 |
503 |
153 |
101 |
M24 |
80 |
10 |
485 |
530 |
30 |
45 |
M6 |
3 |
503 |
153 |
101 |
M33 |
80 |
10 |
485 |
530 |
30 |
45 |
M6 |
4 |
603 |
153 |
101 |
M33 |
80 |
10 |
585 |
630 |
30 |
45 |
M8 |
5 |
603 |
153 |
101 |
M42 |
80 |
10 |
570 |
630 |
45 |
45 |
M8 |
6 |
803 |
203 |
161 |
M42 |
120 |
10 |
755 |
830 |
60 |
45 |
M8 |
7 |
483 |
263 |
121 |
M33 |
180 |
10 |
450 |
510 |
45 |
45 |
M6 |
8 |
553 |
263 |
121 |
M33 |
180 |
10 |
520 |
580 |
45 |
45 |
M6 |
9 |
623 |
263 |
121 |
M42 |
180 |
10 |
590 |
650 |
45 |
45 |
M8 |
10 |
803 |
353 |
161 |
M48 |
200 |
10 |
750 |
830 |
60 |
58 |
M8 |

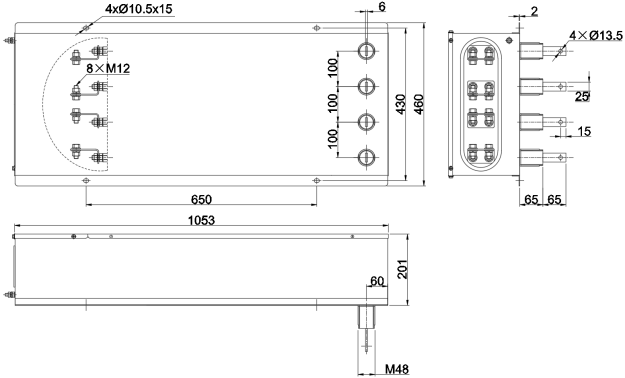

Fig.11
直流型号表 Filter Table
型号 model |
额定电流A Rated curren |
进线接线螺杆 Incoming wiring screw |
输出导线 Output lead |
波导螺杆 Waveguide screw |
外形尺寸Fig. Outline Drawing |
插入损耗dB insertion loss |
DYX-3x300C-F-10 |
300 |
M12 |
25×5 |
3×M42 |
12 |
100dB 备注：可拓展至40GHz remarks: It can be extended to 40GHz |

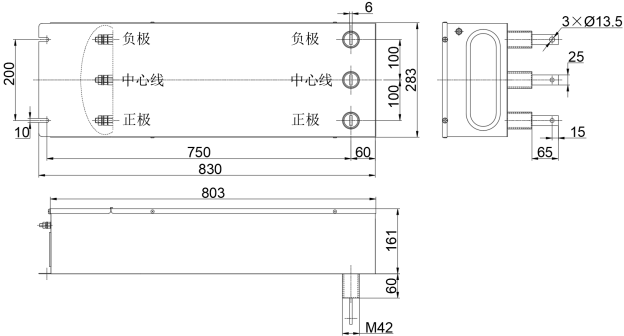

Fig.12
注：此结构壳体可用于EMC实验室、400Hz、直流、差模高性能电源滤波器，具体参数请咨询公司工程部
