特 点 Features

● PCB线路板安装。PCB board installation.

● 体积紧凑。It's compact.

应 用 Application

● 各种模块电源与小型电子仪器AC或DC侧。

Various module power supply and small electronic

instrument AC or DC side.

性能指标 Characteristcs

额定电压Rated voltage	250VAC,50/60Hz；250VDC
工作频率 Operating Frequency	DC~400Hz
额定电流Rated curren	1A~16A@40℃max.
耐压试验 (60s) Test Voltage	1500VDC（线-线Line - line） 1500VAC（线-地Line - ground） 3000VDC/2S
气候类别 Climate category	25/100/21

产品型号表 Filter Table

型号 model	接线方式：输入输出		额定电流A Rated curren	MAX泄漏电流mA leakage current	放电电阻KΩ resistance	电路图Fig. Circuit diagram	外形尺寸Fig. Outline Drawing
YX-211-1-	P	P	1	0.5		1	1
YX-211-3-	P	P	3	0.5		1	2
YX-211-6-	P	P	6	0.5		1	2
YX-211-10-	P	P	10	0.5	1000	2	3
YX-221-16-	P	P	16	0.5	1000	2	3

电原理图Typical Circuit Diagram

Fig.1 Fig.2

插入损耗 Insertion LOSS in dB (50Ω测量系统，IEC/CISPR No.17号出版物)

1A 3A 6A

10A~16A

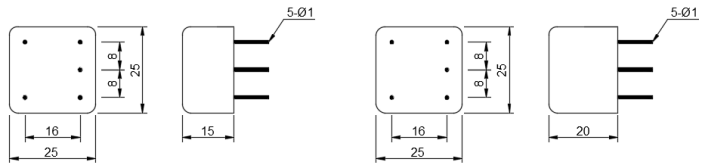

外形尺寸图 Outline Drawing : mm

Fig.1 (1A) Fig.2( 3A~6A)

Fig.3 (10A~16A)
