分类

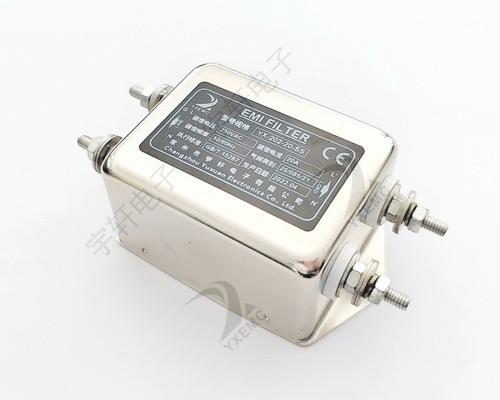

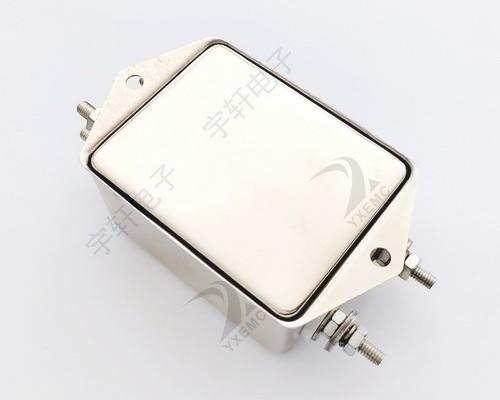

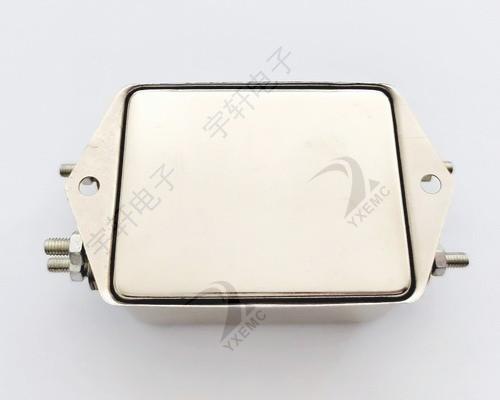

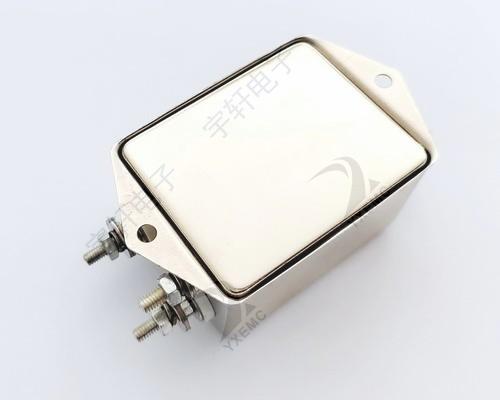

特 点 Features
● 体积小，性价比高。Small size, high cost performance.
● 常规通用，安装方便。General purpose, easy to install.
应 用 Application
● 各种电子设备和电子测量仪器。
All kinds of electronic equipment and electronic
measuring instruments.
性能指标 Characteristcs
额定电压Rated voltage |
250VAC,50/60Hz；250VDC |
工作频率 Operating Frequency |
DC~400Hz |
额定电流Rated curren |
1A~200A@40℃max. |
耐压试验 (60s) Test Voltage |
1500VDC（线-线Line - line） 1500VAC（线-地Line - ground） 3000VDC/2S |
气候类别 Climate category |
25/100/21 |
产品型号表 Filter Table
型号 model |
接线方式：输入输出 |
额定电流A Rated curren |
MAX泄漏电流mA leakage current |
放电电阻KΩ resistance |
电路图Fig. Circuit diagram |
外形尺寸Fig. Outline Drawing |
||
|
|
|
||||||
YX-211-1- |
TT |
WW |
1 |
0.7 |
1000 |
1 |
1 |
|
YX-211-3- |
TT |
WW |
3 |
0.7 |
1000 |
1 |
1 |
|
YX-211-6- |
TT |
WW |
6 |
0.7 |
1000 |
1 |
1 |
|
YX-211-10- |
TT |
WW |
10 |
0.7 |
1000 |
1 |
1 |
|
YX-211-16- |
TT |
WW |
SS |
16 |
0.7 |
1000 |
1 |
2/3 |
YX-211-20- |
TT |
WW |
SS |
20 |
0.7 |
1000 |
1 |
2/3 |
YX-211-30- |
WW |
SS |
30 |
0.8 |
1000 |
1 |
4 |
|
YX-211-60- |
SS |
50 |
0.8 |
330 |
1 |
5 |
||
YX-221-100- |
SS |
100 |
1.0 |
330 |
2 |
5 |
||
YX-221-200- |
SS |
200 |
1.0 |
330 |
2 |
6 |
||

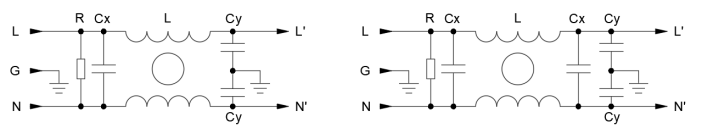

电原理图Typical Circuit Diagram
Fig.1
Fig.2

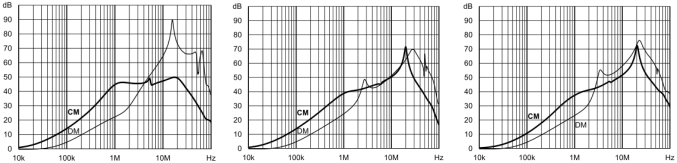

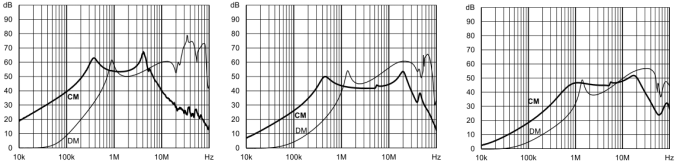

插入损耗 Insertion LOSS in dB (50Ω测量系统，IEC/CISPR No.17号出版物)
1A 3A 6A
10A 16A 20A
30A 60A 100A
200A

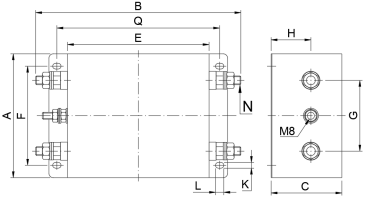

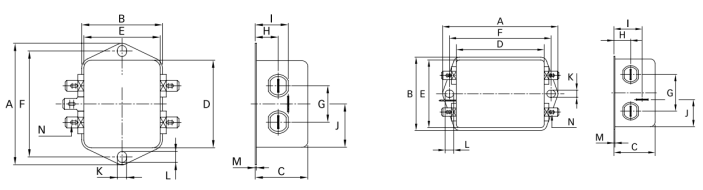

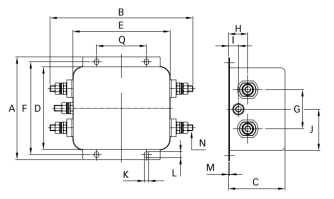

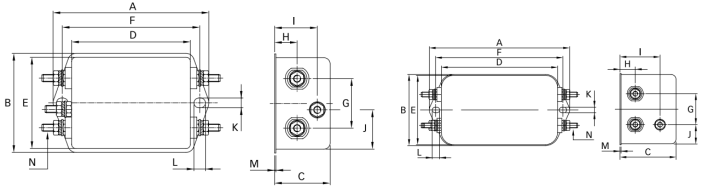

外形尺寸图 Outline Drawing : mm
Fig.1 (1A~10A) Fig.2 (16A~20A)
Fig.3 (16A~20A) Fig.4 (30A)
Fig.5 (60A~100A) Fig.6 (200A)
外形尺寸Fig. |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
Q |
1 (1A~10A) |
64 |
35 |
24.3 |
43.5 |
32.5 |
54 |
21 |
9.3 |
15.3 |
21.8 |
5.3 |
6.3 |
0.7 |
6.3×0.8 |
|
2 (16A) |
71 |
46.6 |
29.3 |
50.5 |
44.5 |
61 |
21 |
10.8 |
19.3 |
20.1 |
5.3 |
6.3 |
0.7 |
6.3×0.8 |
|
2 (20A) |
85 |
54 |
30.3 |
64.8 |
49.8 |
75 |
27 |
12.3 |
20.8 |
19.9 |
5.3 |
6.3 |
0.7 |
6.3×0.8 |
|
3 (16A) |
71 |
46.6 |
29.3 |
50.5 |
44.5 |
61 |
21 |
10.8 |
19.3 |
20.1 |
5.3 |
6.3 |
0.7 |
M4 |
|
3 (20A) |
85 |
54 |
30.3 |
64.8 |
49.8 |
75 |
27 |
12.3 |
20.8 |
19.9 |
5.3 |
6.3 |
0.7 |
M4 |
|
4 (30A) |
113.5 |
57.5 |
45.4 |
94 |
56 |
103 |
25 |
12.4 |
32.4 |
15.5 |
4.4 |
6 |
1 |
M4 |
|
5 (60A) |
105 |
145.9 |
57.6 |
84.5 |
99.5 |
95 |
40 |
19.6 |
10.1 |
42.25 |
4.4 |
6 |
1.2 |
M6 |
51 |
5 (100A) |
130 |
177 |
50 |
100 |
120 |
115 |
65 |
28 |
28 |
50 |
6.5 |
4.5 |
1.2 |
M8 |
80 |
6 (200A) |
140 |
232 |
80 |
160 |
112 |
80 |
45 |
6.4 |
9.4 |
M10 |
184 |
